Steel-Plastic Geogrid Welding Machine

Steel-Plastic Geogrid Welding Machine

The steel-plastic geogrid welding machine adopts advanced vibratory friction welding technology, integrating high welding efficiency, energy-saving performance, and intelligent control. The complete system includes key modules such as automatic unwinding, threading, welding, cutting, rewinding, and unloading. It supports fully automated welding production for various geogrid materials, including steel-plastic composite geogrids, fiberglass, polyester, and plastic. This equipment is an ideal solution for large-scale manufacturing of reinforcement materials used in modern infrastructure projects.

Core Product Features：

  • Multi-material compatibility: Supports welding of geogrids made from PP, PE, PVC, PET, steel wire, and more.
  • High-quality welds: Surface friction heating protects internal structures, delivering clean weld points with high strength.
  • Energy-efficient and high-performance: Reduces energy consumption by approximately 70% compared to traditional equipment, with significantly improved welding efficiency.

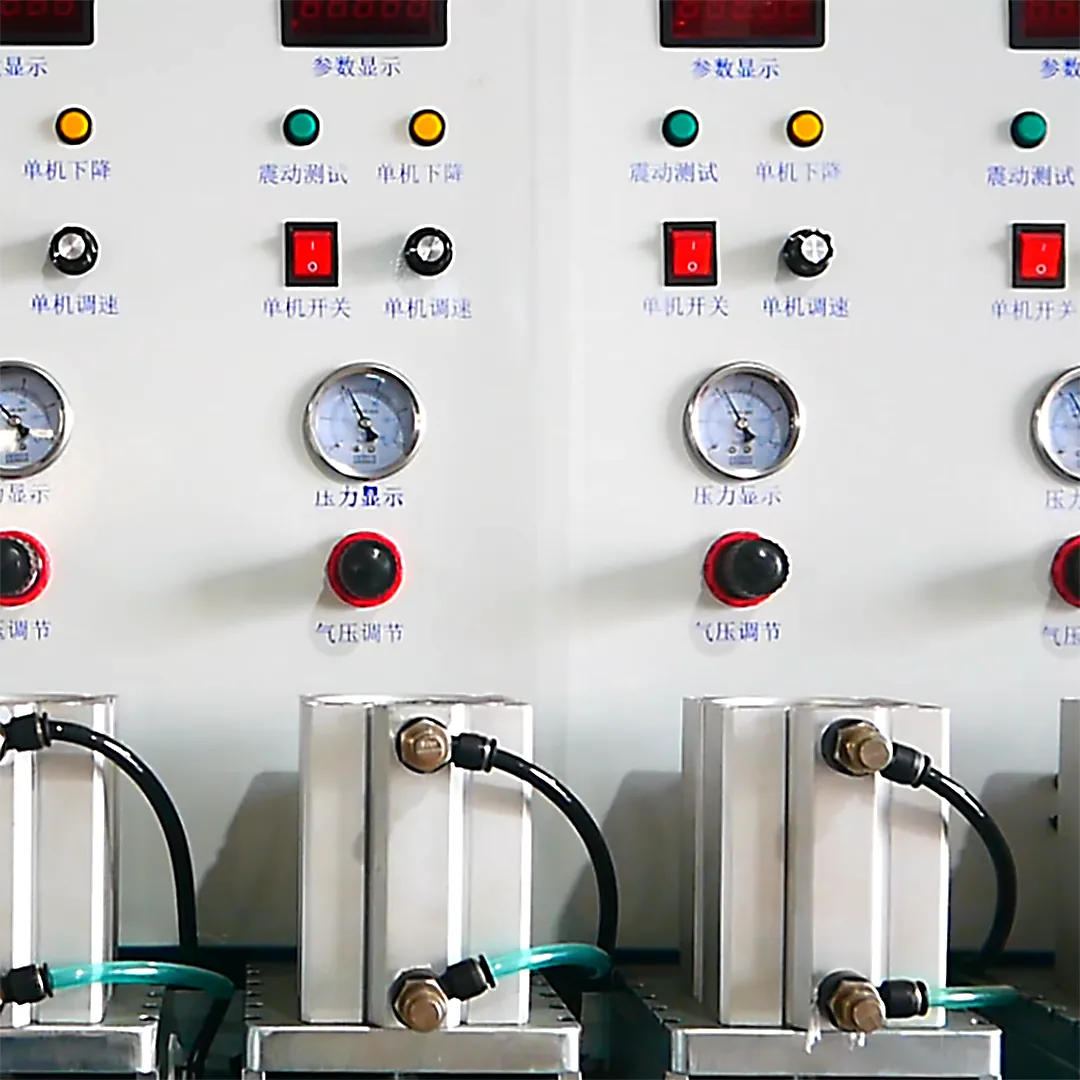

  • Automated control: PLC and touch screen system for easy operation and stable performance.
  • Low-noise, eco-friendly design: Operates with reduced noise, ideal for environmentally conscious workshops.
  • Durable and reliable structure: 90% fewer wear parts, lower maintenance costs, and longer service life.

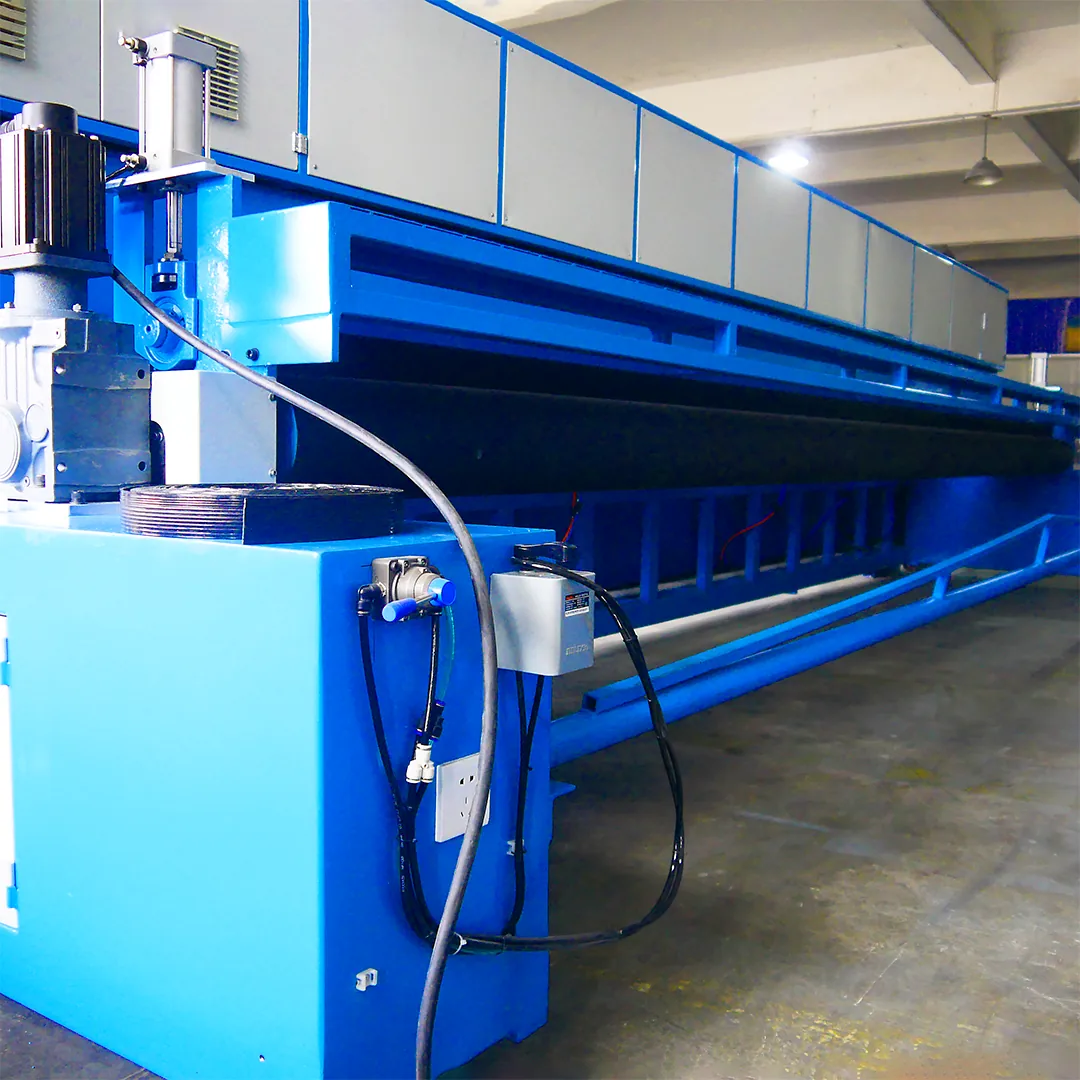

  • Fully integrated production line: Combines threading, traction, clamping, cutting, rewinding, and unloading for streamlined, high-efficiency operation.
Catergories: , Tags: , ,

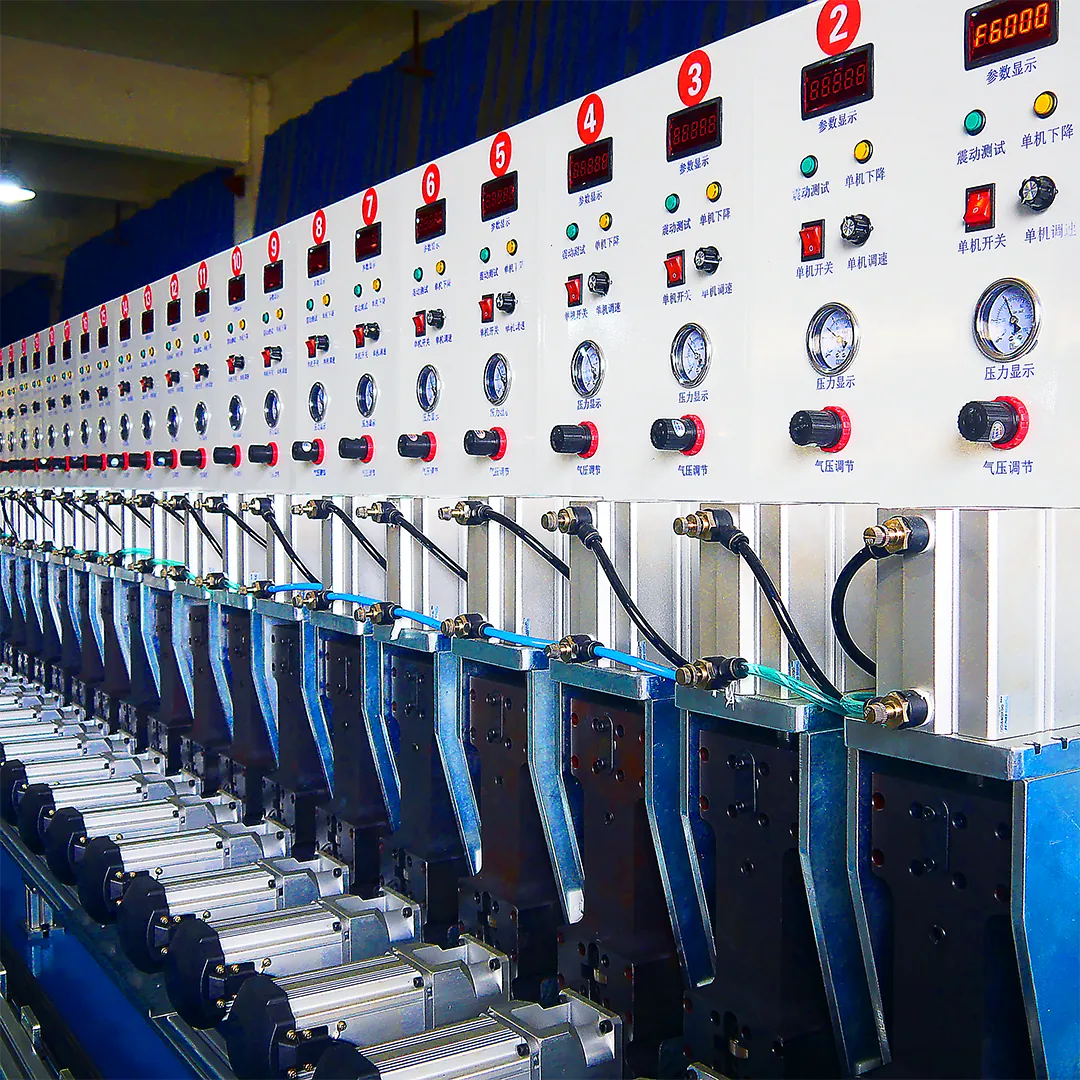

Vibration Friction Welding Process

The Ruimin vibration friction welding process employs a low-power high-speed brushless motor with a drive controller, along with precision mechanical components, to execute vibration friction. This method ensures precise motion coordination throughout the welding process. The surface friction heating welding enables adaptation to various materials, including steel wire, fiberglass, polyester, PET, and tensile PP, among others, by incorporating internal reinforcing ribs.

Capabilities of Vibration Friction Machines

Vibration friction machines offer capabilities comparable to ultrasonic machines. Utilizing the motor’s rapid reciprocating friction during the meshing process of upper and lower tooth plates, the product undergoes heating and fusion without internal heat generation. Even under low-power conditions, it achieves welding effects surpassing ultrasonic welding by tenfold instantly. The design features separate welding molds and an independent computer control system, ensuring optimal appearance and stable strength at each welding point.

Advantages of New Geogrid Vibration Friction Welding Equipment

  • Enhanced Performance:Faster welding speed leads to improved production efficiency, increased output, and reduced production costs.
  • Reduced Vulnerable Parts: Compared to traditional machines, the new equipment reduces vulnerable components by 90%, enhancing durability and reliability.
  • Improved Welding Quality: Ensures higher welding effect and strength, maintaining consistency in appearance and strength across all welding points.
  • Energy Efficiency: Drastic reduction in electricity consumption by approximately 65%, significantly cutting operational costs.
  • Automation and Ease of Operation: Offers a higher degree of automation, simplifying operation and reducing manual labor requirements.
  • Enhanced Aesthetics: Welded products exhibit smoother surfaces and enhanced aesthetic appeal.
  • Environmental Benefits: Lower noise emissions and increased environmental friendliness compared to traditional methods.
  • Material Versatility: Suitable for welding various raw materials, including PE, PP, PET, PVC, and others, expanding its application versatility.

Advantages of Vibration Friction Welding

  • Cost Efficiency: The vibration friction welding process consumes only 30% of the electricity required by ultrasonic welding, resulting in significant cost savings in energy expenses.
  • Reduced Maintenance Needs: With fewer vulnerable components and a more stable mechanical design, the equipment experiences reduced wear and tear, minimizing the need for maintenance and replacement of parts such as molds, transducers, and power sources.
  • Increased Stability and Value Preservation: The streamlined design and reduced reliance on fragile parts contribute to a more stable equipment structure, enhancing its longevity and value retention. This stability translates to fewer equipment downtimes, minimizing production interruptions and labor costs.
  • Enhanced Competitiveness: By reducing production costs, improving output, and ensuring consistent welding quality, the vibration friction welding process enhances the competitiveness of products in the market. This allows businesses to offer high-quality products at competitive prices, attracting more customers and expanding market share.
