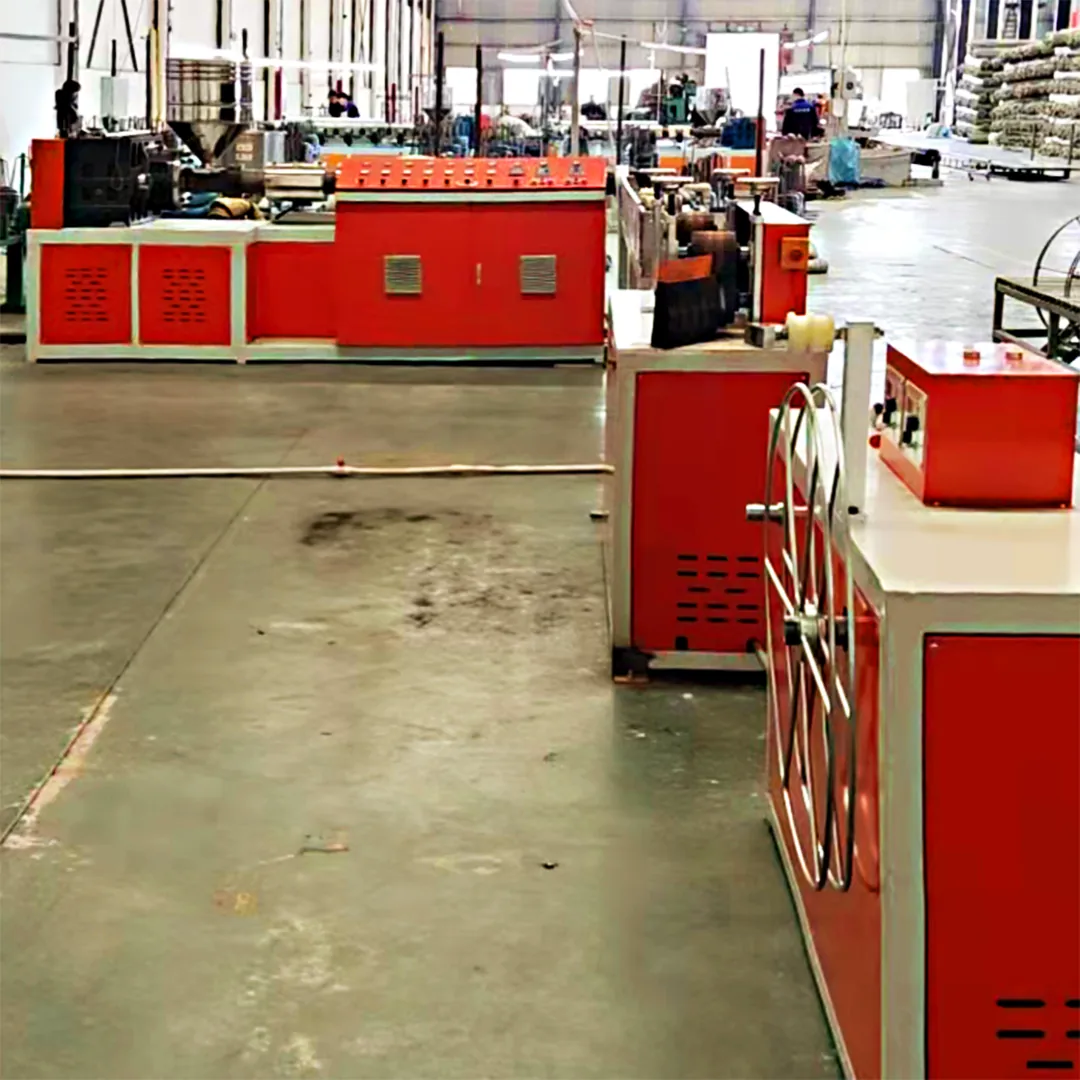

The ultrasonic geogrid strip extruder efficiently mixes, heats, and extrudes plastic raw materials while precisely feeding steel wires into the forming zone, enabling stable and continuous production of geogrid strips. The entire line features advanced screw design, a closed-loop cooling and dewatering system, automated control, and precision winding to ensure uniform plasticization, accurate dimensions, and excellent surface quality of the final product.
Core Product Features：
Key Components and Features：
Equipment Configuration:
Steel wire reel rack: Used for storing wire reel, each rack can hold 20 wire reels, made of steel structure with welding.

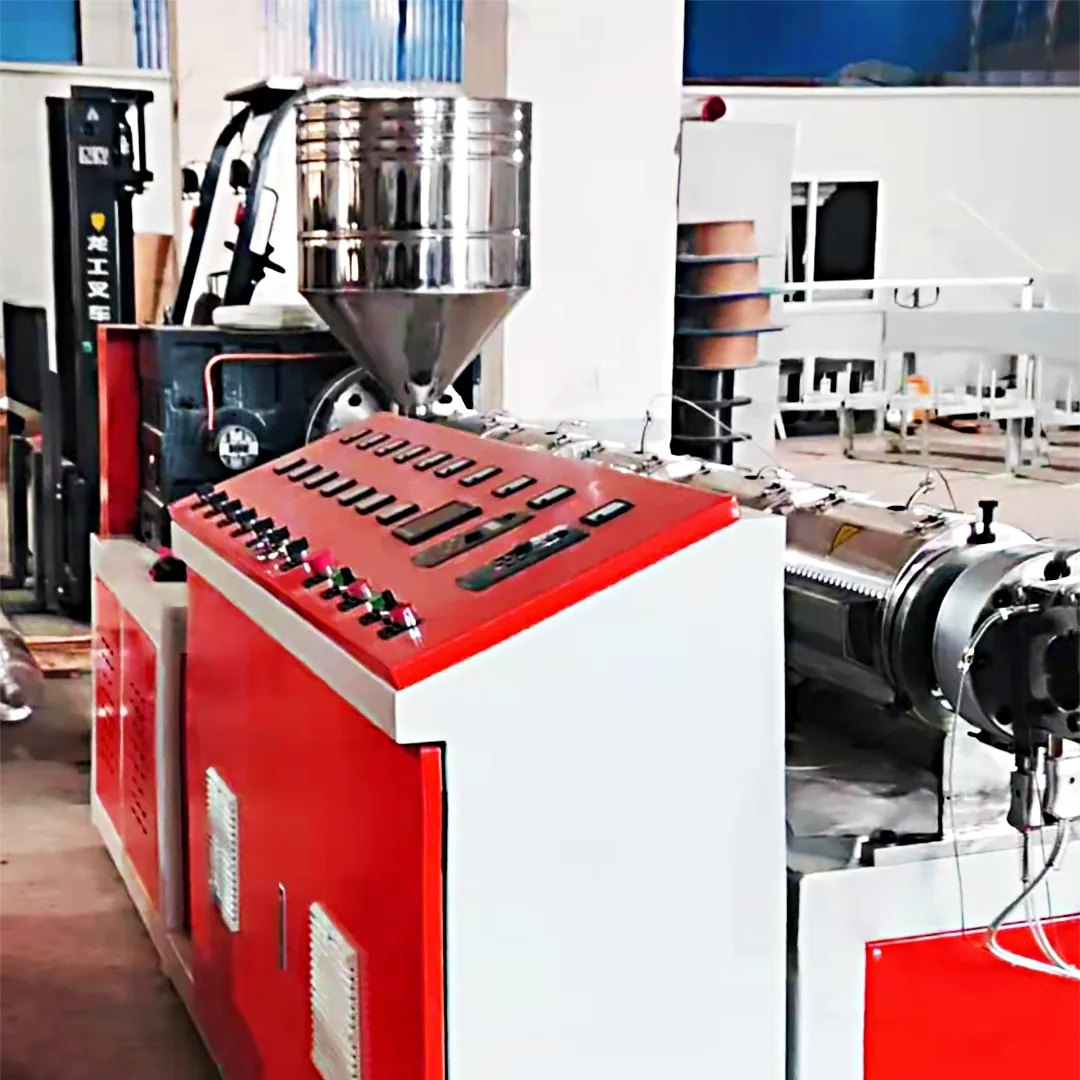

SJ-75/30 Single Screw Extruder
Specific Requirements:
Due to the optimized screw design and innovative slotted barrel liner, the extruder offers the following advantages: high plasticizing efficiency, uniform melt homogeneity, and stable continuous production. It also features a high-performance gear reducer with high torque output, long service life, and low noise levels.
2.1 Model: SJ-75×30
2.2 Screw Diameter:75mm
2.3 Machine Barrel
2.4 Reduction box (gear case)
2.5 Feeding Stand
2.6 Automatic Feeder
2.7 Hopper Type Drying
2.8 Main Drive Motor
Mold (One-in-Two) (10mm-16mm)1 set
Made of high-quality mold steel, with a compact structure, reasonable connections, and easy replacement.
The runner surface is plated with hard chrome and polished, with a thickness of 0.03-0.05mm, hardness HRC50-60, and polishing accuracy of 0.02-0.06um.
Chrome plating on the outer surface：0.02-0.03mm for easy maintenance and rust prevention
Strips out quantity: 2 strips
Stainless steel heating ring connection heating power: 4kW

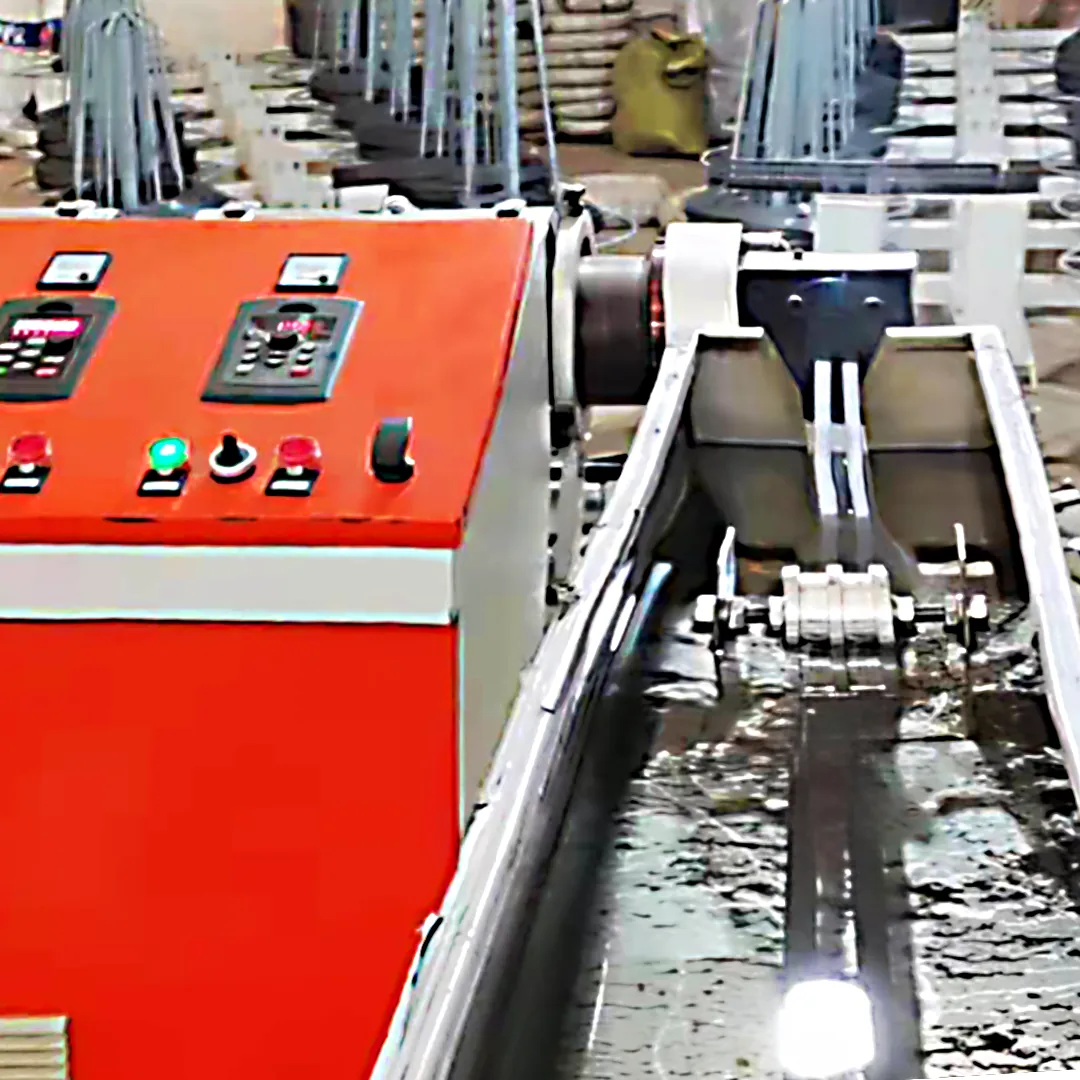

Cooling Tank
The cooling tank is used to control the crystallinity of the plastic and ensure the elongation rate of the billet during stretching. The tank body is made of stainless steel.
The tank uses a circulating water system and is equipped with an inlet, outlet, and overflow. The circulating water pump draws water from the water tank through the filtration system, water cooling system, dual-channel water pipeline, and spray pipeline, spraying cooling water.
Powerful Vacuum Water Removal System: A powerful suction fan extracts moisture from the surface of the strips. The extracted water is then separated by a water-vapor separator and returned to the water tank for recycling.
Main Parameters:
Double Roller Embossing Traction Machine
Used for the first traction after extrusion cooling, composed of a motor, reducer, traction rollers, and gears, with variable frequency speed regulation. Helical gear transmission ensures smooth operation, low noise, and no vibration.
Duplex Winder
Used for winding products, forming rolls, and length measurement with automatic center alignment and winding. It consists of a winding disc, winding core, transmission device, frame, and electrical control.
Fiber strapping tape standard paper tube.
Control and Electrical Cabinet
All units of the production line, including feeding, extrusion, and traction, are integrated into the control system. The entire line can be operated in linkage mode or each unit can be controlled independently. A mechanical trigger switch can be used to stop the machine and sound an alarm in case of a line break.
